SmartGen Mini

The SmartGen Mini is the easiest and most inexpensive solution for your station for RDS/RBDS. The USB and LAN connectivity allows programming of the non-volatile memory, using any PC and the supplied Windows® software.

UGS : RDS-MINI Catégorie :

UECP Compatible, Compact RDS/RBDS Encoder with LAN & USB Connectivity

Compact, Robust, Reliable and Smart
  • Supports European CENELEC and United States NRSC standards
  • Attractive price and very good price-performance ratio
  • Supports RT+ for songs and content tagging
  • PS & Radio Text Scrolling Options
  • Supports TMC (Traffic Message Channel)
  • Compatible with EWS (Emergency Warning System)

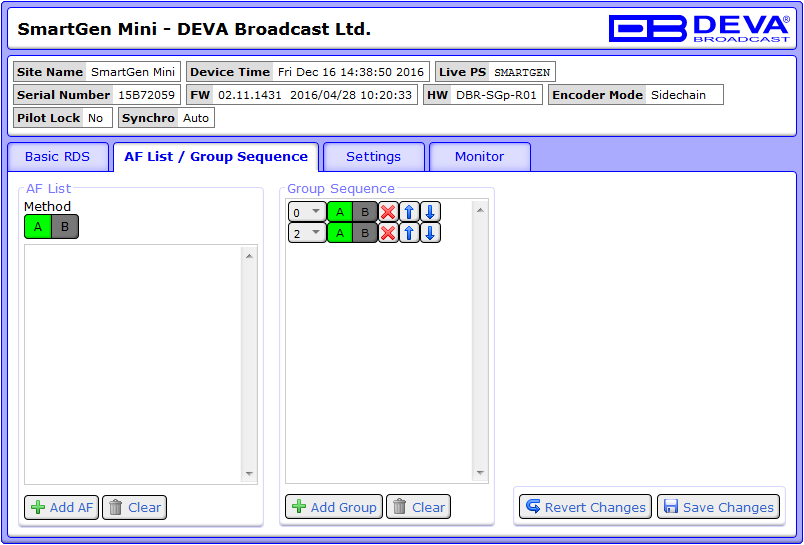

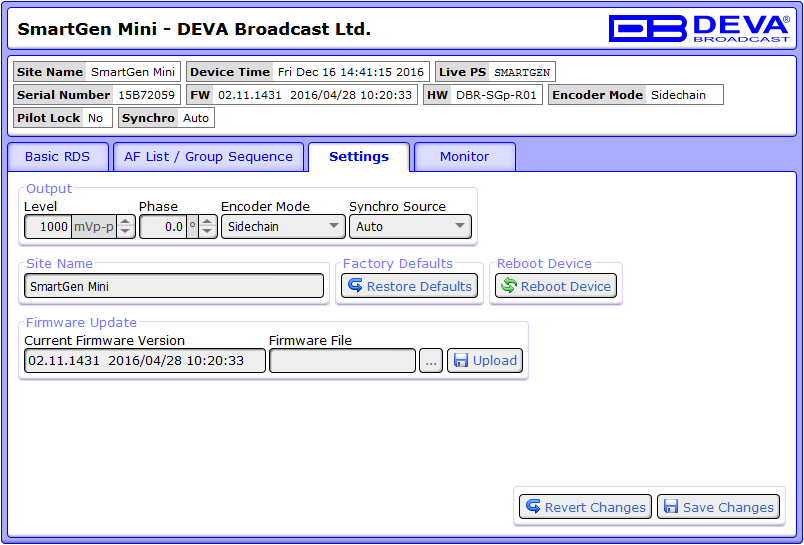

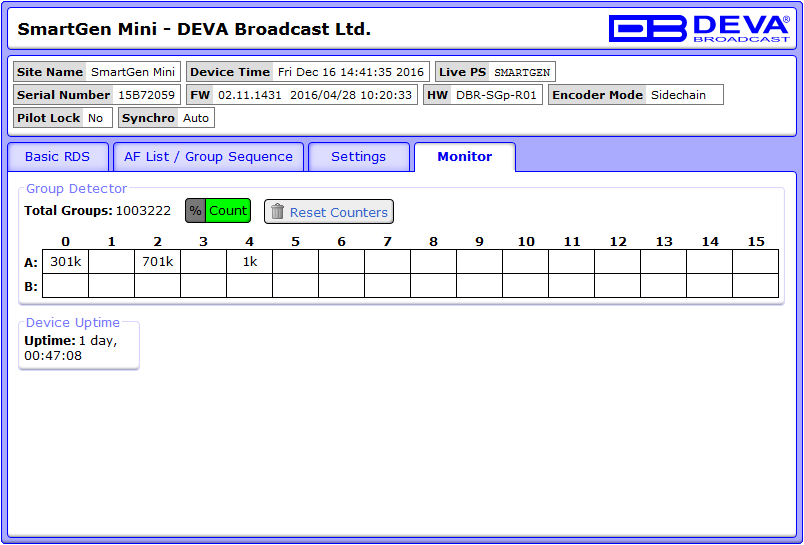

  • Embedded WEB server for interactive supervision
  • Fully Digital Synthesis of RDS signal
  • Fully compatible with UECP EBU SPB490 Version 7.05
  • MPX Loopthrough & Sidechain Modes
  • Internal or external Pilot / MPX synchronisation

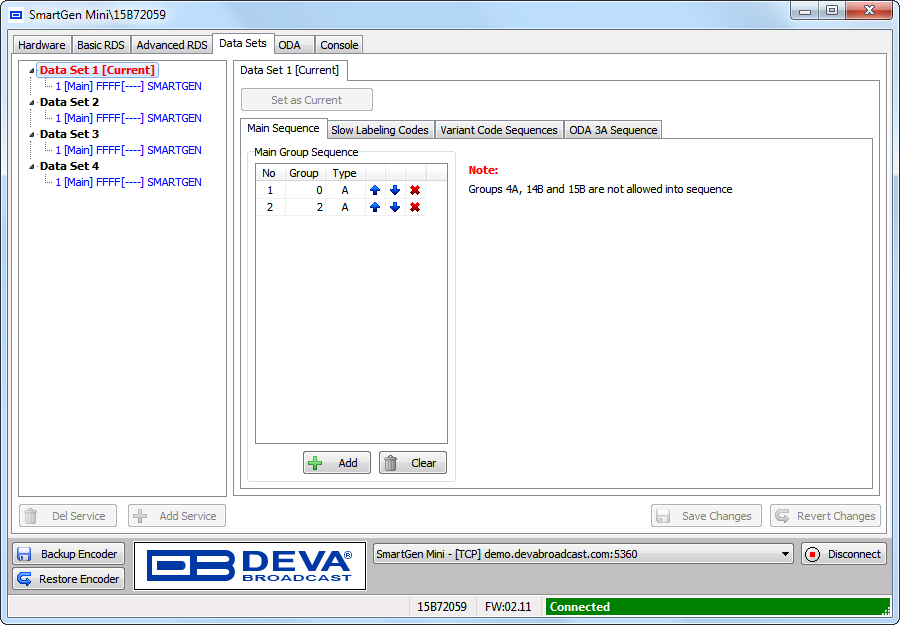

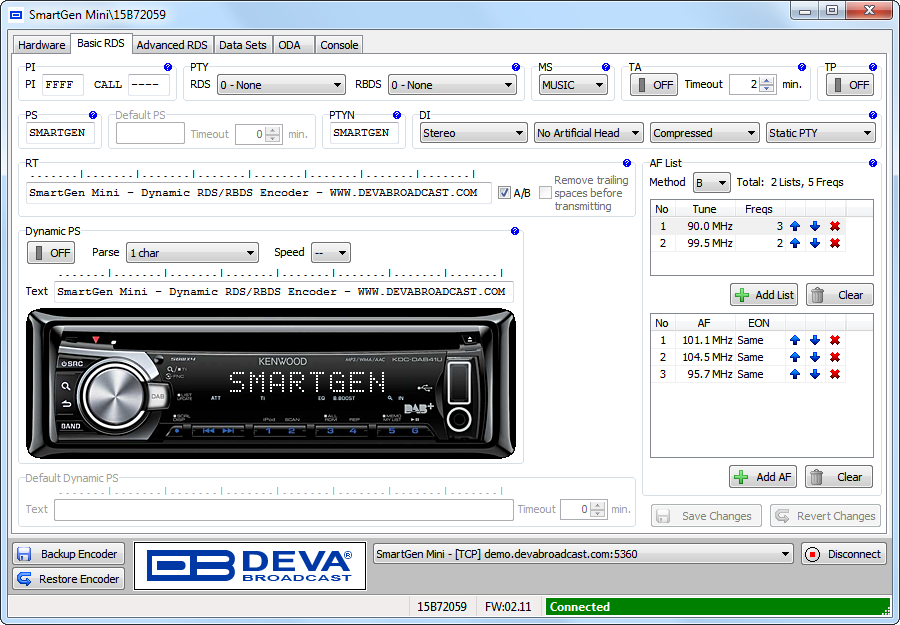

  • Very Intuitive UECP Configuration Software
  • Remote RDS viewer to visualize broadcasted data



  • Proved and reliable hardware for 24/7/365 operating
  • Easy Installation and Setup
  • LAN & USB Programming Interfaces
  • Remote configuration via ASCII or UECP through LAN or USB
  • Interfaces with all popular radio automation systems
  • Built-in dedicated 19kHz source for internal sync
  • Built-in failsafe bypass relay
  • Includes the TA function for traffic message priority override
  • Works with any FM exciter and stereo generator
  • SNTP for automatic synchronization of the built-in clock
  • Internal data diagnostics and transmission safeguards
  • Real time clock Schedules for Scrolling Text and text lists
  • Compact and Robust Aluminum Case for high RF immunity

Compact, Robust, Reliable and Smart – This is just a small part of all the advantages of our Second Generation RDS/RBDS Encoder SmartGen Mini. The interactive function RT+ for song tagging is fully supported without a compromise. Based on the latest RDS technology, the SmartGen Mini is fully digitally designed for 24/7/365 operation. The SmartGen Mini is the most cost-effective solution for sending of TMC and EWS Services. It supports both European CENELEC and United States NRSC standards and is fully compatible with the latest UECP EBU SPB490 Version 7.05

SmartGen Mini gives dynamic, on-the-fly programming access with its built-in USB, TCP/IP, UDP/IP interfaces. This connectivity permits full integration of RDS/RBDS transmissions with the station’s other networked functions, including message streamings for digital radio and Webcasting. The SmartGen Mini encoder provides a full loop-through interface for connection to your existing broadcast chain. The SmartGen Mini can ‘parse’ scrolling text, automatically breaking the phrases into word groups.

The SmartGen Mini has all the RDS features that you could possibly need and that at an incredible price.
