SmartGen Micro

The SmartGen Micro demonstrates an excellent price-performance ratio. This unit can transmit all the basic RDS plus decoder information and music/speech flags. This unit will also guarantee you PS and radio text scrolling options.

UGS : RDS-MICRO Catégorie :

Fully Digital, Compact, Affordable
  • Very Attractive Price
  • Very Good Price-Performance Ratio
  • PS & Radio Text Scrolling Options
  • Fully Digital Synthesis of RDS signal

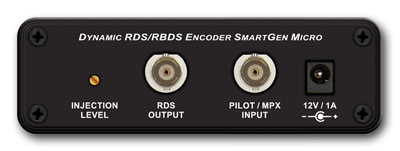

  • MPX Loopthrough & Sidechain Modes



  • Internal or external Pilot / MPX Synchronisation
  • Very Intuitive Windows Configuration Software
  • Proved and reliable hardware for 24/7/365 operating
  • Built-in dedicated 19kHz source for internal sync
  • Works with any FM exciter and stereo generator



  • Supports both RDS & RBDS standards
  • Easy Installation and Setup
  • USB Programming Interfaces
  • Built-in failsafe bypass relay
  • Robust Aluminum Case for high RF immunity

SmartGen « Micro » Encoder is a quick and inexpensive way to have an RDS/RBDS available. The SmartGen « Micro » is able to transmit basic RDS information such as the Program Service name(PS), Program Identification(PI), Alternative Frequencies(AF), Program Type(PTY). Decoder Information and Music / Speech flag are also supported. USB connectivity makes it easy to program the non-volatile memory using any PC and the supplied Windows® software. After programming, the unit should be disconnected and re-installed on the transmitter site. Though it is not capable of « dynamic » messaging of the song titles, SmartGen « Micro » will identify your station by format, displaying your station’s « street name », continuously transmitting any station promo or advertising message to your listeners.
