Encodeur IP DB91-TX

High-operational efficiency second generation IP Audio encoder
UGS : DB91-TX Catégorie :
High-operational efficiency second generation IP Audio encoder
  • High Quality HE-AAC (v.1 & 2) and MPEG-1 Layer-3 Compression
  • 32 kHz, 44.1 and 48 kHz sample rates support
  • Up to 88 kbps bitrate for HE-AAC
  • Up to 320 kbps bitrate for MPEG-1 Layer-3
  • Up to 1536 kbps for PCM
  • Analog Audio Input (2 x RCA connectors)
  • Digital Audio Input (RCA Connector)
  • SHOUTcast / Icecast compatible TCP/IP stream server
  • Up to 10 simultaneously connected clients
  • SHOUTcast v1 Source
  • Icecast Source Client
  • Multicast RTP Sender
  • 2 x 5 LED front panel audio level bar graphs
  • 4 x Status LEDs
  • Phones output for quick diagnostics
  • IP address pronunciation at startup (through the headphones)

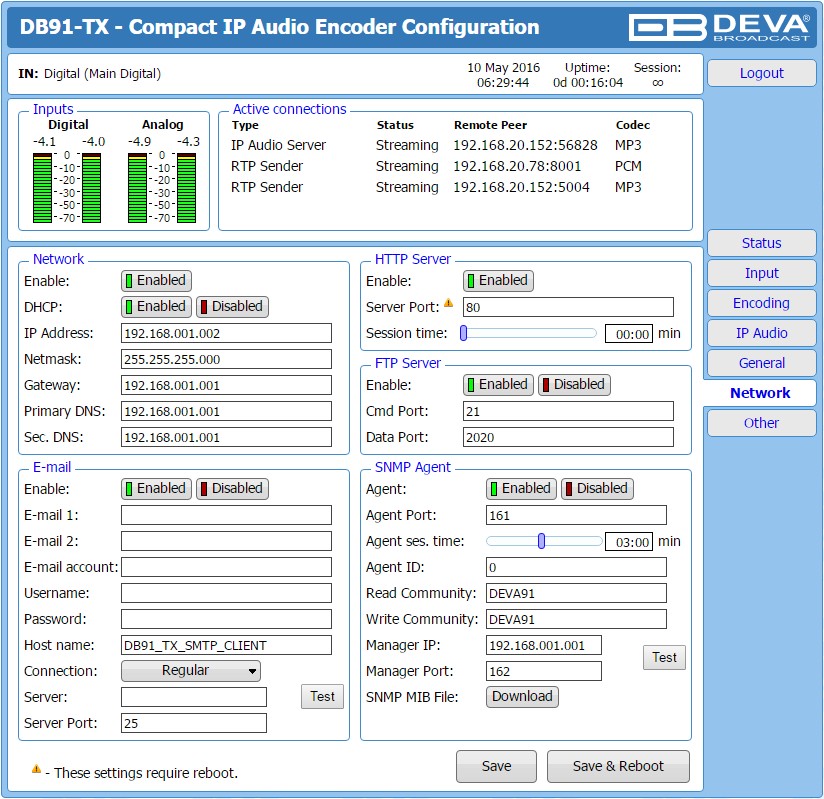

  • Full Control and easy setup via a standard web browser
  • UPnP for easy discovery in Local Networks

DEVA’s in-depth expertise in IP Audio technologies meets cutting-edge trends in DB91-TX, designed to guarantee you outstanding performance. This second generation IP Audio encoder converts the audio signal into high quality compressed audio stream, and transmits the output signal directly over IP-based networks. To ensure audio transmission without quality loss, DB91-TX also supports uncompressed PCM audio stream.

Small and compact, this high-tech device enables quick incorporation in the existing audio systems and their respective effortless integration to the Internet. The front panel’s audio level bar graphs and LED indicators allow for reading at a glance the current state of the device. In line with DEVA’s very essential brand characteristics – easy set-up and monitoring, the DB91-TX could be managed through a simple and intuitive HTML5 interface and any kind of web browser, be it your PC, smart phone or tablet, remotely or locally.

To unit ensures premium broadcasting experience as once the audio source is selected, the encoded in real time audio is immediately transmitted over IP-based networks. The enhanced DB91-TX can act simultaneously as an Icecast/Shoutcast compatible Server, Icecast source client or Real Time Protocol (RTP) sender. The audio stream can be spread over an IP-based network to one or more DB90-RX, DB91-RX or other compatible IP audio decoders. To address the evolving customer needs, the DB91-TX IP Audio Encoder can also send audio to a number of clients simultaneously, provided that a multicast address is being entered as a client address.

Decades of experience to our credit, expanded tech expertise and understanding of customer’s needs have resulted in agiler, trusted and cost-efficient solutions that improve broadcasters’ performance. DB91-TX, with its compact form, wide array of enviable features and intuitive control interface is the valuable asset to any enterprise in need of preeminent broadcasting systems and services.

Audio Encoder
Count 2 user selectable plus 1 fixed (PCM)
Codec HE-AAC (v.1 and v.2), MPEG-1 Layer 3 or raw PCM
Sample rates 32 kHz, 44.1 kHz and 48 kHz
Channels 1 or 2
Bit Rates Up to 88 kbps (HE-AAC); Up to 320 kbps (MPEG-1); Up to 3072 kbps (PCM);
MPEG-1 Layer 3 specific
Encoding mode Mono and Stereo, Joint Stereo or Dual Channel
Emphasis 50µs, CCITT J.17 or none
IP Audio Server
Type SHOUTcast/Icecast compatible TCP/IP stream server
Codec Any of the available
Count Up to 10 simultaneously connected clients
Icecast Source Client
Type Icecast Source Client
Codec Any of the available
Count Up to 3 independent streams
SHOUTcast Source
Type SHOUTcast v1Source
Codec Any of the available
Count Up to 3 independent streams
RTP Sender
Type Unicast/Multicast RTP Sender
Codec Any of the available
Count Up to 3 independent streams
Analog audio input
Connector 2 x RCA, stereo
Type Unbalanced
Level +6 dBu (max. +8dBu), user selectable
Sample rate 32 kHz, 44.1 kHz and 48 kHz
Dynamic range 102 dB
Digital audio input
Connector RCA
Type S/PDIF (IEC 60958)
Resampling Thru build-in sample rate converter
Front panel
Level indicators 2 x 5 LED bar graphs
Status Indicators 4 LEDs
Headphones 1/8” (3.5mm) phones jack
SD Card microSD card slot
User interface
Indicators 14 LEDs on front panel
Web interface Full control and status information
Network
Connector RJ-45
Type Ethernet
Device discovery UPnP support
Operating conditions
Temperature 10°C – 45°C
Humidity < 75%, non-condensing
Power requirements
Connector Power Jack 5.5mm
Power supply 12V DC, 1A
Size and Weight
Dimensions (W;H;D) 106 x 33 x 128 mm
Shipping Weight 230 x 54 x 172 mm / 0.7kg

Brand

DEVA BROADCAST
