DB90 TX – IP Encoder

DB90-TX is an integrated audio converter that converts audio signal into a high quality compressed audio stream. The signal can be compressed by HE-AAC, MPEG-1 Layer 3 encoder.

UGS : DB90-TX Catégorie :

DB90-TX also supports uncompressed PCM stream in order to ensure audio transmission without quality loss. Compression is performed in real time, and the output signal is transmitted directly by IP-based networks. DB90-TX can work with both analog and digital audio signal. No matter how sophisticated, DB90-TX is located in a small and compact housing. All this allows you to quickly and painlessly integrate existing audio systems to the Internet.

Developed with the thought of easiness of use, DB90-TX can be managed through a standard Web browser, PC, PDA or other device, making it the best choice for professional and consumer use.

  • High Quality HE-AAC (v.1 and v.2) and MPEG-1 Layer-3 Compression
  • 32 kHz, 44.1, 48 and 96 kHz sample rates support
  • Up to 56 kbps bitrate for HE-AAC
  • Up to 320 kbps bitrate for MPEG-1 Layer-3
  • Up to 3072 kbps for PCM
  • 6 LEDs and Phones output for quick diagnostics
  • IP address pronunciation at startup (through the headphones)
  • DHCP Client automatically assigning Network Settings
  • Full Control and easy setup via a standard web browser
  • UPnP for easy discovery in Local Networks
  • Shoutcast / Icecast compatible TCP/IP stream

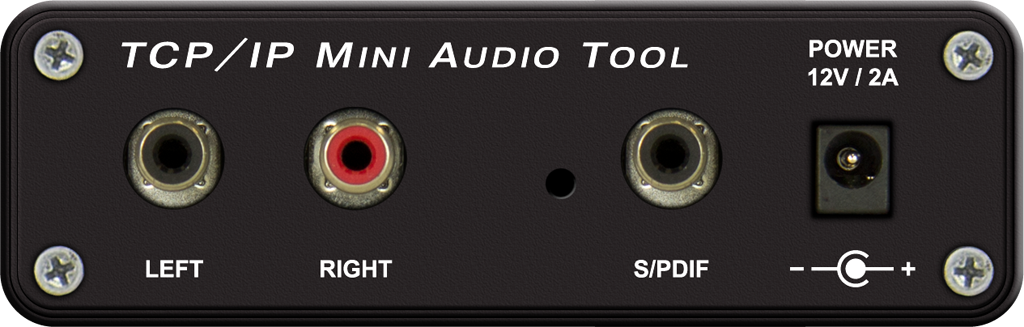

  • Analog Audio Input (2 x RCA connectors)
  • Digital Audio Input (RCA Connector)
  • RJ-45 Ethernet Connector
  • Up to 10 simultaneously connected clients
